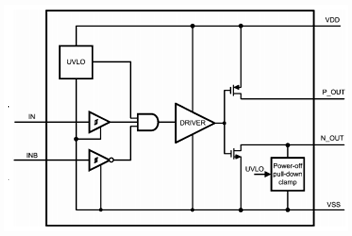

LM5114 – Single 7.6A Peak Current Low Side Gate Driver

Key Features:

• Independent Source and Sink Outputs
• 7.6A/1.3A peak sink/source drive current
• Matching delay time between inverting and non-inverting inputs
• Low input capacitance: 2.5pF (Typ)

Packages:

SOT23-6

LLP-6 (3mm x 3mm)

Availability:

www.ti.com/product/ucc27611

Evaluation Tools:

http://www.ti.com/tool/lm5114bsdeval
EPC9003: half bridge development board featuring EPC2010
