EPC2020 - Enhancement Mode Power Transistor

VDS, 60 V
RDS(on), 2.2 mΩ
ID, 90 A
Pulsed ID, 470 A
TJ150°C
RoHS 6/6, Halogen Free

EPC2020 Enhancement Mode GaN Power Transistor

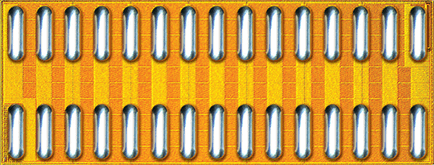

Die Size: 6.05 mm x 2.3 mm

Applications

  • DC-DC Converters
  • Motor Drive
  • Industrial Automation
  • Sync rectification for AC-DC & DC-DC
  • Inrush Protection
  • Class D Audio

Benefits

  • Higher Switching Frequency – lower switching losses and lower drive power
  • Higher Efficiency – lower conduction and switching losses, zero reverse recovery losses
  • Smaller Footprint - Higher power density
  • Lower RDS(on) - Higher current operation
Status: New Device Offered (NDO)
The GaN Experts recommend EPC2302 for new designsNDO Note: This is an earlier generation device, and although it is fully supported, the recommended device will provide better price and performance in most applications.
