EPC9047 – 150 V 半桥开发板

EPC9047开发板具150 V最高器件电压、12 A最大输出电流、采用半桥拓扑及板载驱动器并采用EPC2033增强型(eGaN®)场效应晶体管。



EPC9047 Waveform ChartWaveforms for operation as a 110 V to 5 V/ 12 A (100kHz) buck converter
CH1: VPWM Input voltage – CH2: (IOUT) Switch node current – CH4: (VOUT) Switch node voltage

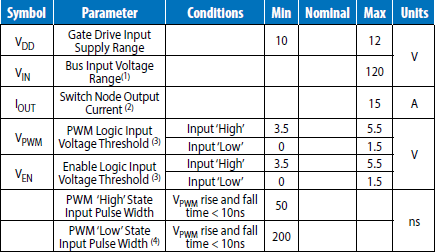

* Assumes inductive load, maximum current depends on die temperature – actual maximum current will be subject to switching frequency, bus voltage and thermal cooling.
# Dependent on time needed to ‘refresh’ high side bootstrap supply voltage.
