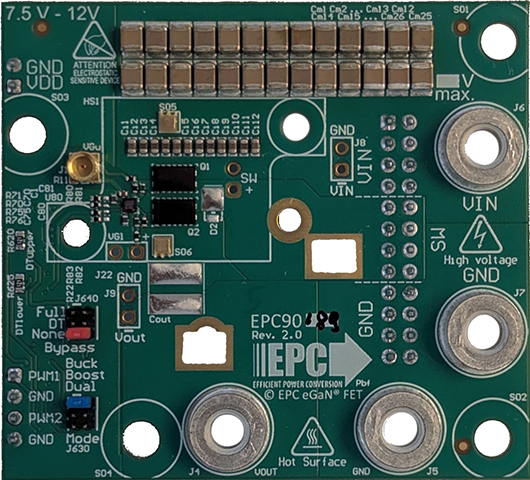

EPC90189 : 100 V, 60 A Half-Bridge Development Board
Featuring EPC2375
The EPC90189 is a half-bridge development board with onboard gate drive featuring the 100 V rated EPC2375 eGaN® FET. The purpose of this
development board is to simplify the evaluation process of the EPC2375 by including all the critical
components on a single board that can be easily connected into most existing converter topologies.
The EPC90189 development board measures 2.5” x 2.5” and contains two EPC2375 GaN FETs in a half bridge
configuration. The EPC90189 features the LT8418 gate driver. The board contains all critical components,
and the layout supports optimal switching performance. There are also various probe points to facilitate
simple waveform measurement and efficiency calculation.
