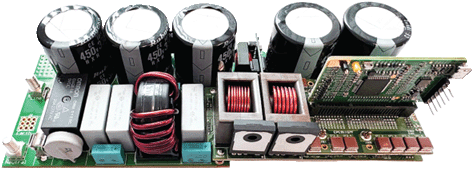

EPC91107KIT – 5 kW 4-Level Totem-Pole PFC Evaluation Board
The EPC91107KIT evaluation board is a 4-Level Totem-Pole PFC evaluation board featuring the EPC2304 GaN FET, rated at 200 V, 3.5 mΩ (typical). The EPC91107KIT can deliver 12.5 A at 400 VDC output.
Features
- Designed for Open Compute Platform (OCP) servers
- Maximum power: 5 kW
- Output: 400 VDC – 13.5 A
- Input: 200 VAC_RMS – 277 VAC_RMS, max. 25 AAC_RMS
- Power density: 170 W/in3
- Efficiency meets 80 plus requirements THD meets OCP requirements Switching frequency: 420 kHz (3 x 140 kHz)
- Digital control: Microchip DSP
Applications
- AI Servers and Data Centers
- Telecom and 5G Power Supplies
- EV Chargers
